Rigid Water & Fuel Tanks for Boats RVs & Caravans

Water, Waste and Diesel Tanks


Examples of standard and custom tanks.


Standard Tanks:    Open PDF Diagrams of Standard Tanks

Our tanks have been manufactured for and fitted to just about every type of Recreational Vehicle from small camper trailers to luxury motor homes to sailing boats, houseboats, and world cruisers.

How do we compare on price? "Generally" speaking our fabricated tanks are about 2/3 to 3/4 of the cost of stainless steel and our standard tanks are about 1/2 the cost.

All tanks come standard with an inlet, outlet and breather port threaded. Generally, turnaround time is 10-15 working days from receipt of firm order.

We use a unique construction method to ensure the highest possible tank strength. The method includes a wrap/fold and double weld, the result is a tough durable tank. Our water tanks are made of Polyethylene which is corrosion and oxidisation free. This is particularly important in marine applications and under-vehicle uses where the tank may be exposed to corrosive conditions.

There are no compromises with our tanks, you can have any fitting anywhere you’d like. This is also a huge benefit when matching existing or adding additional storage capacity.

No smelly water, no discolouration of water and no rust or metallic pieces in your drinking water. Atlas Tanks are made of Food Grade Plastic so your drinking water will taste as it should.


Open PDF Diagrams of Standard Tanks

Water, Waste & Diesel Tanks Sizes & Prices:   (Certified Survey Diesel Tanks further down the page)

If you do not see your size here, then you may need a custom made tank which adds about 65% to the price depending on complexity. Custom tanks are hand made.

Any of the tanks listed below can be made for diesel.  The standard size diesel tank price is plus 40%.

We also make certified survey diesel tanks in 4 sizes... scroll down to see sizes available.

None of these tanks are  suitable for petrol.

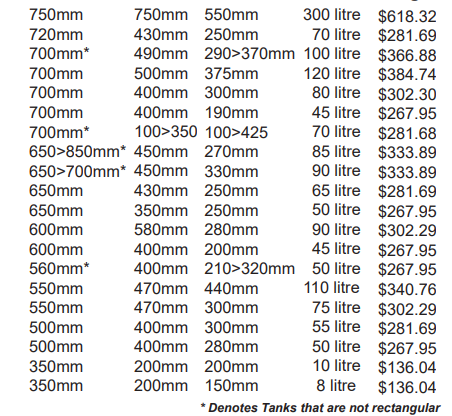

Longest Mid Shortest Capacity Price Inc GST
1950mm 345mm 160mm 90 litre $267.30
1500mm 900mm 300mm 380 litre $572.00
1400mm 650mm 750mm 600 litre $810.70
1400mm* 700>640>350 335mm 250 litre $426.80
1350mm* 450mm 270>385mm 180 litre $375.00
1300mm* 630>810mm 335mm 300 litre $495.00
1280mm 560mm 170mm 110 litre $327.80
1215mm 480mm 190mm 100 litre $267.30
1200mm 345mm 150mm 55 litre $225.50
1200mm 345mm 200mm 80 litre $242.00
1200mm 750mm 200mm 165 litre $375.00
1200mm* 470>540mm 390mm 225 litre $400.40
1200mm 400mm 400mm 180 litre $375.00
1200mm 380mm 290mm 120 litre $335.50
1100mm 600mm 230mm 140 litre $357.50
1070mm* 490>370mm 300mm 110 litre $335.50
1000mm 500mm 400mm 185 litre $385.00
1000mm 270mm 150mm 35 litre $214.50
950mm 650mm 260mm 150 litre $357.50
900mm 530mm 320mm 145 litre $357.50
900mm* 500>700mm 500mm 235 litre $426.80
900mm 450mm 250mm 95 litre $267.30
900mm 390mm 300mm 95 litre $267.30
850mm 650mm 550mm 285 litre $495.00
850mm 520mm 450mm 185 litre $385.00
845mm 475mm 185mm 60 litre $225.50
800mm 450mm 350mm 120 litre $308.00
800mm 280mm 230mm 45 litre $214.50
770>820mm* * 200mm 330mm 45 litre $239.80
750mm 750mm 550mm 300 litre $495.00
720mm 430mm 250mm 70 litre $225.50
700mm* 490mm 290>370mm 100 litre $293.70
700mm 500mm 375mm 120 litre $308.00
700mm 400mm 300mm 80 litre $242.00
700mm 400mm 190mm 45 litre $214.50
700mm* 100>350 100>425 70 litre $225.50
650>850mm* 450mm 270mm 85 litre $267.30
650>700mm* 450mm 330mm 90 litre $267.30
650mm 430mm 250mm 65 litre $225.50
650mm 350mm 250mm 50 litre $214.50
600mm 580mm 280mm 90 litre $242.00
600mm 400mm 200mm 45 litre $214.50
560mm* 400mm 210>320mm 50 litre $214.50
550mm 470mm 440mm 110 litre $272.80
550mm 470mm 300mm 75 litre $242.00
500mm 400mm 300mm 55 litre $225.50
500mm 400mm 280mm 50 litre $214.50
350mm 200mm 150mm 10 litre $108.90



Certified Survey Approved Diesel Tank Sizes
 Not suitable for petrol

1000mm 500mm  400mm  185 litre  $546
900mm 400mm  300mm  100 litre $431
600mm 400mm  200mm  40 litre $330
500mm  400mm  300mm  52 litre  $368

Diesel tanks only are supplied with all fittings included - 1-1/2” filler, 5/8” vent, 1/2” or 3/8” outlet and return and 1-1/4” threaded port for sensor


Open PDF Diagrams of Standard Tanks


Guages and senders are 12 volts.  A 24-12 volt adapter is available.

Open PDF Diagrams of Standard Tanks
