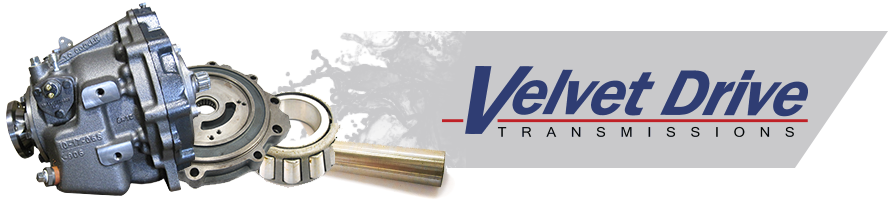

Velvet Drive Marine Gearboxes



For over 65 years, Velvet Drive Transmissions has been a world leader in marine and industrial transmissions.

Velvet Drive Transmissions feature unique technology for quiet and smooth operation, and we use the highest quality and standards in the industry to maintain this excellence.

The gearboxes are supplied on a part number basis.





Liberty Watersports Series 72L/72L-X/72L-V

Marine

  • All aluminum "air craft grade" case is extremely light weight
  • Available in either electric or manual shift
  • High speed rated to 6000 rpm
  • Easily interchanged with existing Velvet Drive models
  • The 72L is rated at 700 ft-lbs of torque for Pleasure Craft gas and 600 ft-lbs Pleasure Craft diesel
  • The 72L-X is rated at 860 ft-lbs of torque for Pleasure Craft gas and 700 ft-lbs Pleasure Craft diesel
  • High speed rated to 6000 rpm

 Download Specs



Liberty Series 72L-HP/72L-H

Marine

  • Dry sump design reduces parasitic losses while ensuring a constant supply of oil to the pump.
  • All aluminum case is extremely light weight
  • Available in both electric and manual shift
  • Drive line and close coupled use the same model with the addition of an adaptor plate (only one unit to stock)
  • High speed rated to 6500 RPM
  • Easily interchanged with existing competitive and Velvet Drive models
  • Clutch pack rated at 2500 ft-lbs in 16 full size clutches and steels

 Download Specs

Liberty 5000/6000 Series

Marine

  • Robust ribbed aluminum housing for "bullet proof" design
  • Ground gearing throughout for whisper quiet operation
  • Various mounting options for easy interchangeability with existing Velvet Drive and competitive models
  • Exact ratio in forward and reverse means zero torque steer
  • Smaller drive package allows more usable boat space where it counts

 Download Specs


71/72 Series

Marine

  • Available in Direct Drive, In-Line Reduction, and V-Drive configurations
  • Wide selection of Reduction Ratios to suit your particular needs
  • Proven, reliable cast iron design

 Download Specs





Common Models & Part Numbers:  (Other models ... please enquire.)

Velvet Drive 2.10:1  VD-1018-000-008

Velvet Drive 71C 1:1 VD-1017-000-004

Velvet Drive 72C 1:1 VD-1018-000-002

Velvet Drive 72C 1.5:1 VD-1018-000-004

Velvet Drive 72C 2.5:1 VD-1018-000-010

Velvet Drive 72C 2.9:1 VD-1018-000-012

Velvet Drive 72C 1.8:1 VD-1018-000-106

Velvet Drive 1.5:1 Liberty VD-3001-000-003

Velvet Drive 2.1:1 Liberty VD-3001-000-004

Velvet Drive 2.5:1 Liberty VD-3001-000-005

Velvet Drive 2.8:1 Liberty VD-3001-000-006

72L Transmission 1 to 1 Manual Shift  VD-3007000M02

Velvet Drive 72C 1.99:1 V-Drive    VD-1005-000-002

Velvet Drive 72C 2.49:1 V-Drive    VD-1005-000-004

Velvet Drive 72C 2.49:1 V-Drive    VD-1005-000-005

Velvet Drive 72C 1.51:1 V-Drive    VD-1005-000-011
