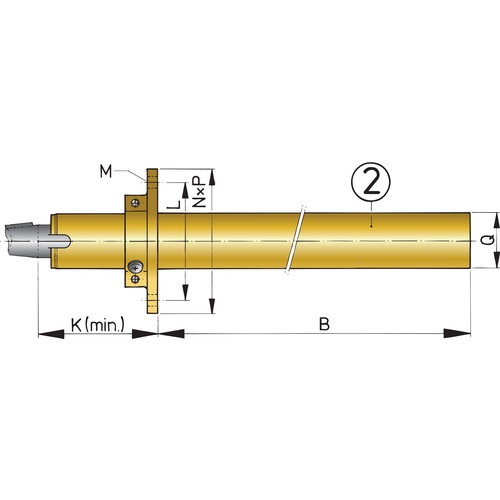

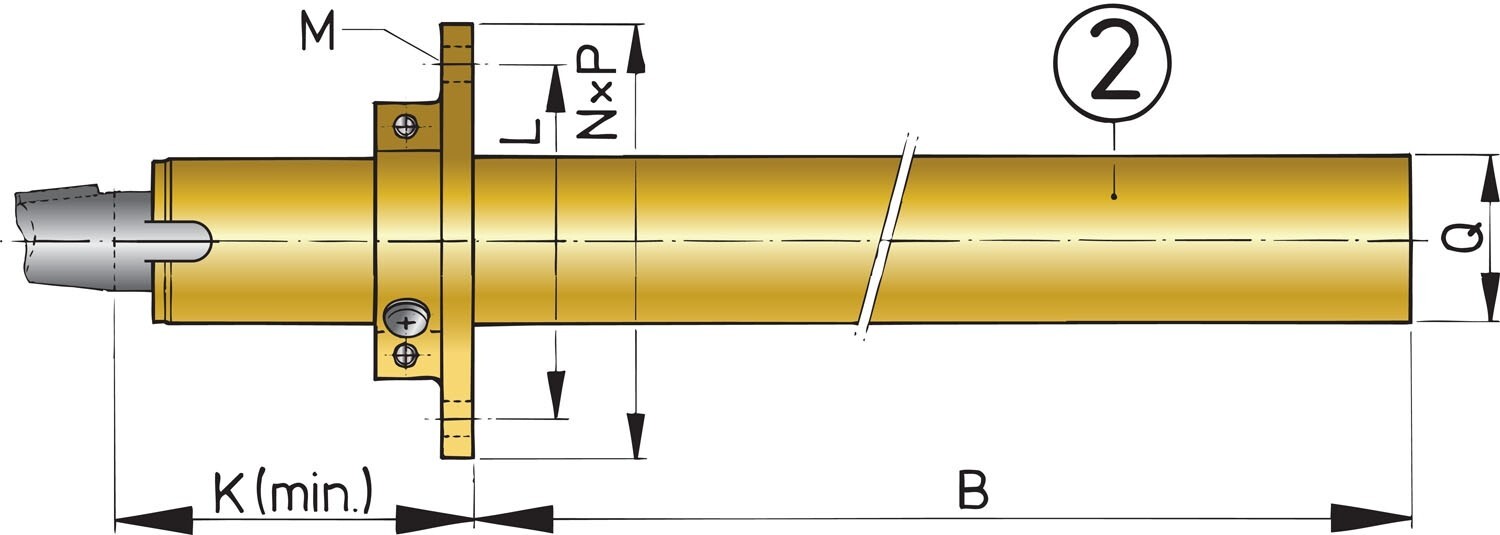

Water lubricated stern gear for G.R.P. or wooden vesselsBronze stern tube with mounting flange and one cutless bearing aft The slots in the tube are designed for easy replacement of the cutless bearing. A bronze stern tube with mounting flange and one cutlass bearing aft. The slots in the tube are designed for easy replacement of the bearing and it is suitable for a 25 mm diameter shaft.
A propeller nut with integrated zinc anode comes as standard with the propeller shaft (option).
There are two possibilities for water lubrication of the shaft assemblies:
1. By means of a water scoop G 3/8 with ball valve hose pillar 1 metre of water hose and hose clamps (optional kit: WCAPS).

2. By tapping a small amount of water from the main engine’s raw water cooling circuit.

For the second option we offer the ZWBKIT. With this kit you have all you need to water lubricate your shaft assembly by using water from the main engine’s raw water cooling circuit. The kit consists of a T-piece(18-10-18mm) 3 meters of Ø 10 mm hose (DWHOSE10A) and 4 hose clampsA bronze stern tube with mounting flange and one cutlass bearing aft. The slots in the tube are designed for easy replacement of the bearing.
And they are suitable for a 25 mm diameter shaft.

A propeller nut with integrated zinc anode comes as standard with the propeller shaft.

There are two possibilities for water lubrication of the shaft assemblies:
1. By means of a water scoop G 3/8 with ball valve hose pillar 1 metre of water hose and hose clamps (optional kit).
2. By tapping a small amount of water from the main engine’s raw water cooling circuit.
Bronze stern tube with cutlass bearing, Ø 25 mm, 500 mm in length

(BL25500)

SKU BL25500
