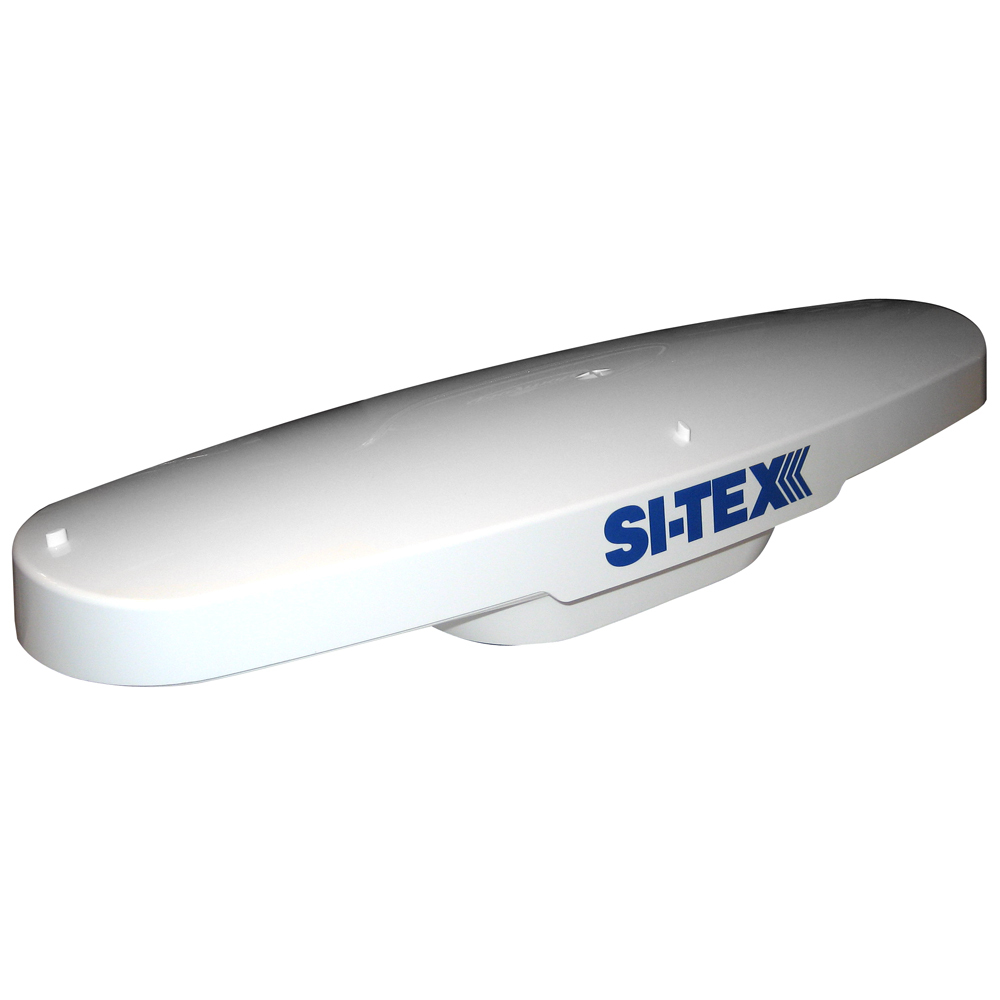

Vector Pro GPS Compass

  • The Vector Pro G2 GPS Compass is a state-of-the-art electronic navigation data device. It is capable of providing highly accurate, high-precision position and heading data to a wide variety of marine Navigation equipment, such as autopilots, sonar, radar, chartplotters, AIS receivers & transponders, and many other types of marine devices & systems.

  • The Vector Pro G2 features fast start-up and signal re-acquisition times, heading & position updates at up to 20 times per second, and can operate at sustained turn rates up to 90 degrees per second.

  • The Vector Pro G2 is a complete GPS Compass in a single rugged, marine-grade enclosure.

  • Precise 2D heading and positioning data
  • Heading accuracy of better than 0.5 degrees
  • Rate of turn tracking rates up to 90'/sec
  • Provides Heave, Pitch & Roll information
  • Pitch and roll accuracy of better than 1 degree
  • Fully compatible with Autopilot, Radar, AIS, PC, Sonar
  • Better than 1 meter differential position accuracy (DGPS/G2B)
  • Differential Correction source options include SBAS (WAAS, EGNOSand MSAS) and RTCM SC-104 data (External Source)
  • G2B can also use terrestrial DGPS Radio beacon signals
  • Integrated Gyro & Tilt sensors provide heading during momentary lossof satellite signals and speed up GPS signal reacquisition
  • Heading Position Updates up to 20 Hz
  • Multiple BAUD rate selections: 4800/9600/19200/38400
  • Pre-programmed default settings for Heading, Rate of TurnCourse over Ground, Lat/Long Geographic position, Time & Date
  • Heading solution for steel vessels
  • Waterproof-commercial grade IP67 standards
  • CE certified for EMI and RFI immunity
  • Optional 15m or 30m cable
  • IMO Compliant
  • Worldwide Service
  • Single power/data cable, which greatly simplifies installation.
  • Power Input 9 to 36 VDC
  • <360 mA@ 12 VDC, <5 w
  • Dimensions 23.6"L x 6.3"W x 7.1"H
  • Weight 3.3lbs
    •

    American Sourced Marine Parts:


    The product on this page ships worldwide from the United States by Fedex, UPS, Aramex or DHL.
    These are premium services with tracking.  Delivery to most destinations is between 6-9 business days.
    The minimum freight charge is AUD$85 (about US$57) See table below.


    All prices shown are in Australian AUD$.

We sell this part by the manufacturer's part number.  These products are special order from the USA, meaning
there are no returns, no exchanges and no refunds possible.  The sale is final.


    Prices include Australian 10% GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
    Shipments outside of Australia are tax free.


    Any additional import fees are paid by the customer.  We will assist with customs formalities if necessary.


    Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
    Where possible warranty DIY spare parts will be provided.
    MarineDirect Australia will contribute $50 towards your return freight charges to the USA
within one year of order if there is a warranty issue.


    Dangerous Goods:


    Liquids, gels, pastes and replacement lithium batteries may not ship under any circumstances.


    Grey Marketing & Compliance:


    Where a brand has an established distributor in
Australia, we will decline to sell it.
    Most such brands and products have been removed
from our American listings.
    Some items shown within this category are intended only
for the American marketplace and
    may not be compliant with Australian Standards
and in which case we cannot sell them to you and/or will refund you.




    Express Freight Charges:  Total freight cost is based on the weigh of the package.


    The default freight charge is $85 for the first kilo.


    The shipping weight kg of the item is shown
under the Specifications tab above.


    We use Fedex, UPS, DHL and Aramex Fedex which is generally a 6-9 business day service. Tracking is provided.


    Following your purchase we will calculate the freight charges based on the table below.   The default shipping rate for 1kg for any order is $85.


    If the weight is greater than 1 kilo, then the following additional amounts will be payable in arrears AUD$ and prior to shipping:





    0-1kg $85 (This is the default rate)


    >1-2kg  +$40


    >2-3kg  +$65


    >3-4kg  +$80


    10kg    +$185


    15kg    +$240


    20kg    +$295


    Some bulky items may be classified as oversize regardless of their weight.  Freight charges over 1 kilo will be based on the table above.




    (28875)

    SKU 28875
    Shipping Weight 7.0900kg
