Single Zone Lighting Control

Simply toggle power to set color and brightness and to select multiple fade modes.

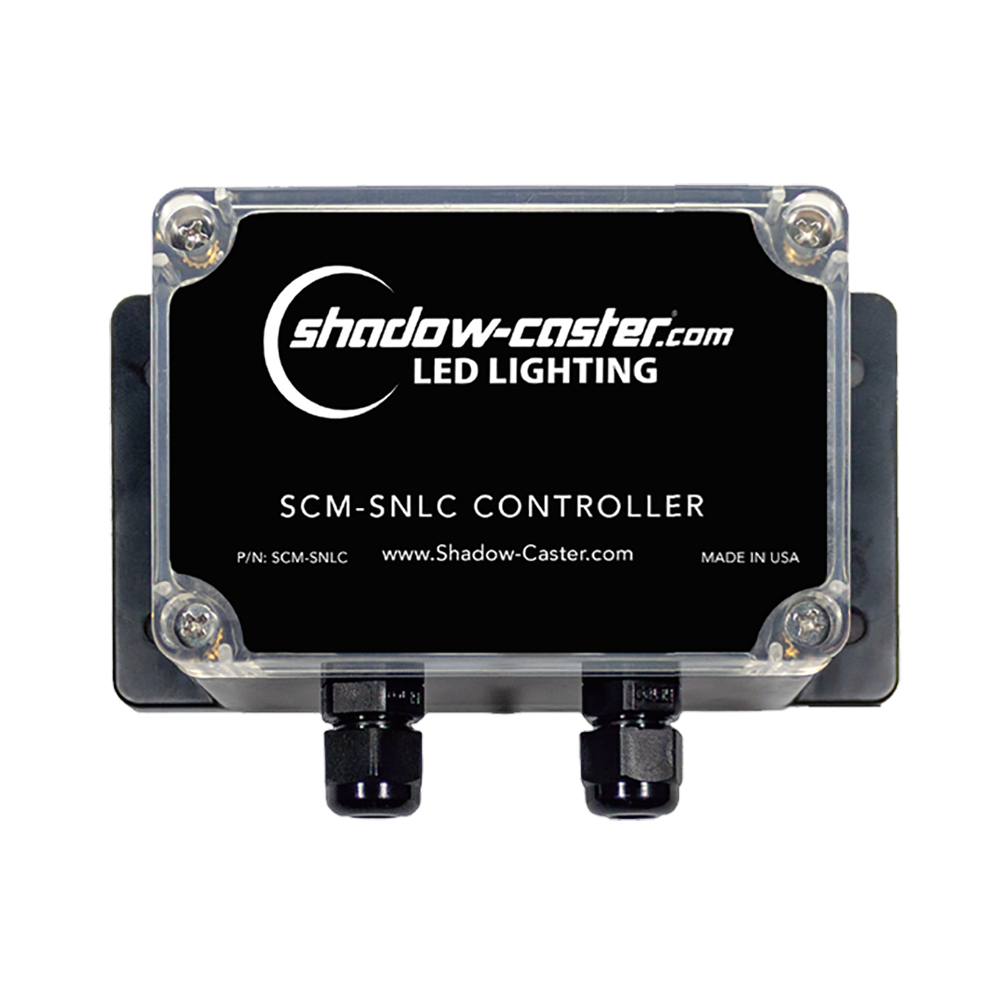

The Shadow-Caster® single-zone lighting controller is a low-cost, marine-grade RGBW LED controller that can be operated from a standard switch. Simply toggle power to set color and brightness. The SCM-SNLC also has a built-in Shadow-NET® interface that allows the controller to synchronize color and lighting control with other Shadow-NET® devices. This enables a convenient way to make Shadow-Caster® underwater lights match the color of interior RGBW lighting.

The SCM-SNLC control also has a built-in ShadowNET® interface that allows the controller to synchronize color and lighting with other ShadowNET® devices. This provides a convenient way to make Shadow-Caster® underwater lights match the color of interior RGBW lighting.

Shadow-NET® is a multi-channel communications platform created by Shadow-Caster® to allow seamless integration and control of all of your boat’s lighting.

For use with fishing boats, pontoon boats, sports boats, and yachts.

Features:

  • Selectable RGB or RGBW output to support an optional white channel
  • Color-coded connections make for easy installation
  • Integrated Shadow-NET® interface broadcasts lighting commands to synchronize other Shadow-NET® enabled lighting products such as underwater lights and downlights
  • This device can be added to an existing Shadow-NET® network as an additional RGBW zone
  • Control brightness, color, and select multiple fade modes • Compatible with RGBW strips from other manufacturers
  • Internal RGBW backlight to indicate current color and mode
  • Exclusive power control technology to mitigate effects of electrical noise
  • Custom software versions available for boat builder applications

Specifications:

  • 5.2” (132mm) x 2” (51mm) x 2.75” (70mm)
  • IP65 washdown rated enclosure
  • 10-30 volts input range
  • Power: Support for 250W of RGBW lighting, 20 amps
  • ATC fuse for protecting the output

Includes:

  • Lighting controller
  • Mounting hardware
  • Quick start guide
  • Standard 2-year warranty


American Sourced Marine Parts:  Please read this.....


The product on this page ships worldwide from the United States by Fedex or DHL.  Prices are AUD$.

Express Delivery Service >30 kilos:
Included: Premium DHL or Fedex 4-7 day service.  Transit Insurance up to AUD$1000 value.  Customs clearance.
GST is already pre-paid. Tracking of your parcel.  Choose Express Freight at checkout.

Not Included: Government tax of AUD$88 for orders over AUD$1000
Freight Charges:


The shipping weight kg of the item is shown
under the Specifications tab.


The Express shopping cart default rate is AUD$85 for the first kilo.    Additional freight charges over one kilo
and taxes will automatically and separately be billed to your credit card. You will receive a receipt for the freight.


The total AUD$ freight rates are:

0-1kg $85 (this is the default express freight charge)
>1-2kg $125
>2-3kg $145
>3-4kg $170
>5-6kg $195
>7kg-8kg $225
>8kg-9kg $250
10kg $275
20kg $400   Estimate only.


Some bulky items may be classified as oversize regardless of their weight and have a longer transit time.

The Fine Print:

We sell this part by the manufacturer's part number only.  These products are a special order from the USA
meaning there are no returns, no exchanges and no refunds possible.  The sale is final.

Prices include Australian GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
Marine Direct Australia will contribute $50 towards your return freight charges to USA
within one year of order if there is a warranty issue.


Grey Marketing & Compliance:

Where a brand has an established distributor in Australia, we will decline to sell it.
Most such brands and products have been removed from our American listings.
Some items shown within this category are intended only for the American marketplace
and may not be compliant with Australian Standards and in which case we cannot sell them to you and/or will refund you.



(85553)

SKU 85553
Shipping Weight 0.3300kg
