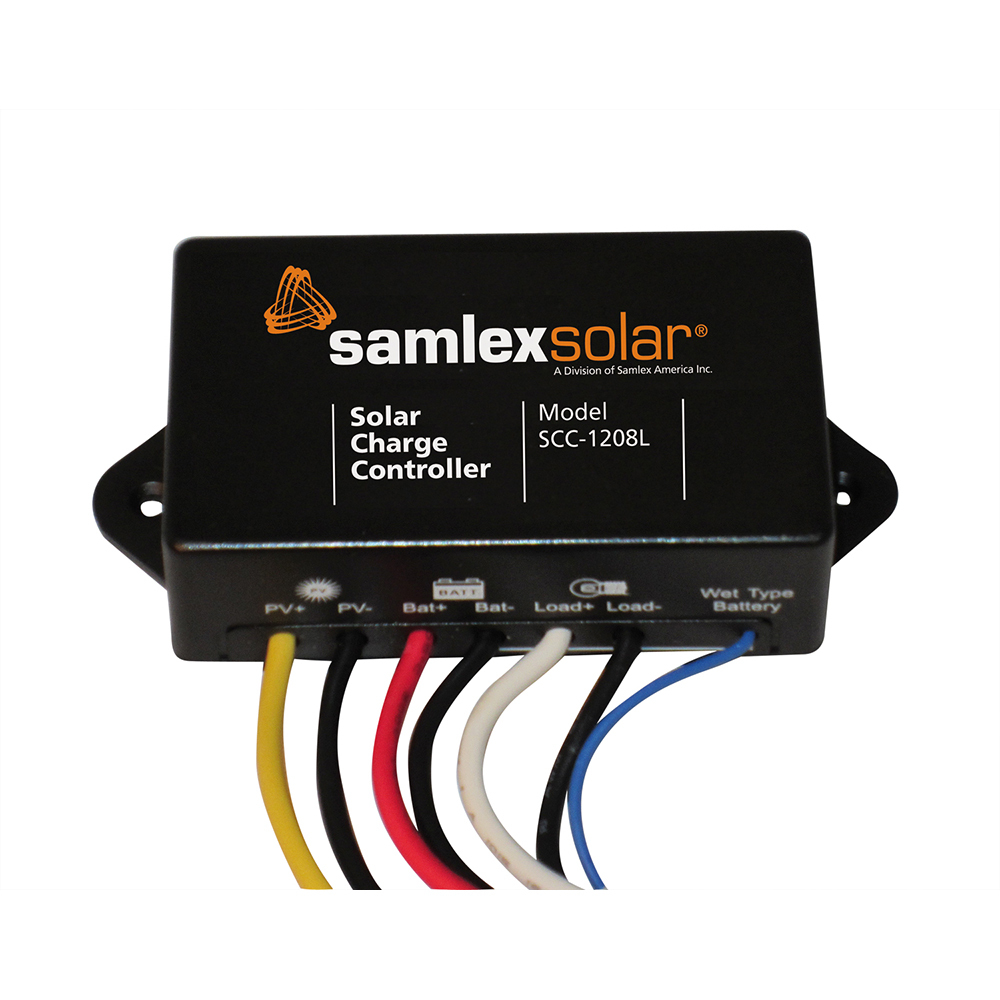

Solar Charge Controller - 12V - 8A

The SCC-1208L Charge Controller is Micro-controller based for automatic, intelligent operation designed for 12 V nominal solar panels and 12 V battery systems. It has 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life. It can be used with 2 types of batteries: Flooded/Web Cell or Sealed AGM. The SCC-1208L can manage up to 150 Watts of Solar Power.

Features:

  • Micro-controller based for automatic, intelligent operation
  • Designed for 12V nominal solar panels and 12V battery systems
  • 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life
  • For use with 2 types of batteries: Flooded/Wet Cell or Sealed AGM
  • Totally sealed, splash proof weather resistant design (Ingress Protection Rating IP65)
  • Automatically turns on lights when dark and turns off during the day
  • Mosfet based reverse current blocking prevents night-time battery discharge and lowers power loss
  • Protections: Overload, Over-Temperature, Battery Under/Over Voltage, Reverse Polarity
  • Wide operating temperature range of -40°C to + 60°C

Specifications:

  • Input: 12V
  • Amps: 8 Amps
  • Weight: 0.28 (lbs) / 0.13 (kg)
  • Dimensions: 3.8 x 1.8 x 1.0 (in)
  • Dimensions: 9.65 x 4.57 x 2.54 (cm)
  • Safety: FCC, CE, IP65
  • Warranty: 5 Year Limited

Applications:

  • Off-grid mobile rural systems
  • Rural electrification
  • Power supply for remote equipment
  • Monitoring systems for the oil & gas industry
  • Traffic, security, environment, and other remote monitoring and signaling systems
  • Water pumping systems
