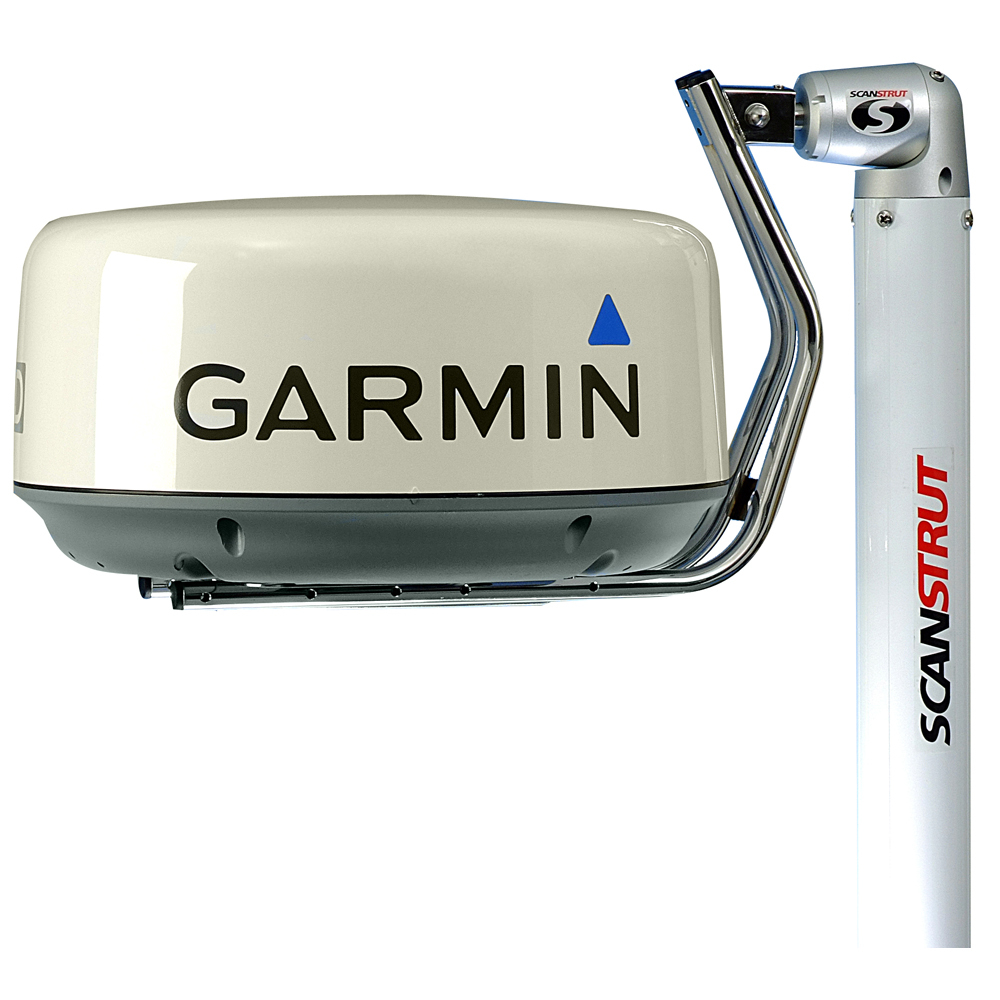

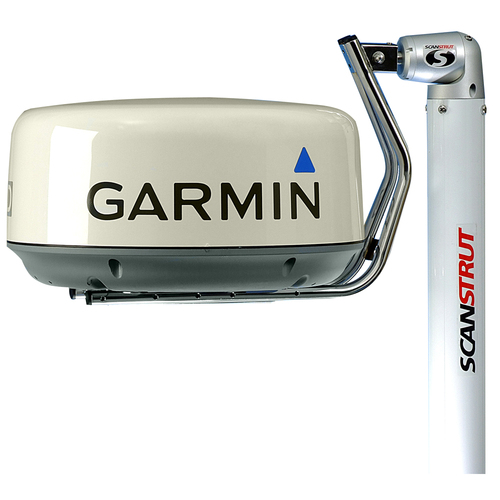

Self Levelling Radar Mount - Pole

Our Self-Levelling Pole Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features
  • Sealed system - entirely maintenance free
  • Universal adjustable base able to rotate through 360° and angle from horizontal all the way to vertical
  • Supplied with two support modules - a deck strut and rail stand off for maximum fore / aft and sideways support
  • Fits to angled decks, narrow swimming steps and steeply sloping transoms
  • Unique pole extrusion with two cable channels with cover strips to hold cables in place
  • Easily removed for racing or winter storage, leaving just low profile deck on deck
  • Existing SC100 Pole Mount installations can be upgraded to self levelling with our upgrade kit

Dimensions
  • 2.5m / 8.3' pole
  • 3" diameter pole
  • Base diameter of just 80mm / 3.1"

Materials
  • Finest quality machined and anodised aluminium head unit ? lasts the lifetime of your yacht
  • Marine grade 316 stainless steel cradle and base plate
  • Marine grade 6082 aluminium pole - polyester powder coated for a durable and gloss white finish

Kit includes
  • 1 x Pole (complete with 2 x cable cover strips)
  • 1 x Adjustable base
  • 1 x Levelling head unit and cradle with plate
  • 1 x 1200mm / 3.9' deck strut
  • 1 x Rail stand off for 25mm / 1" rail


American Sourced Marine Parts:  Please read this.....


The product on this page ships worldwide from the United States by Fedex or DHL.  Prices are AUD$.

Express Delivery Service >30 kilos:
Included: Premium DHL or Fedex 4-7 day service.  Transit Insurance up to AUD$1000 value.  Customs clearance.
GST is already pre-paid. Tracking of your parcel.  Choose Express Freight at checkout.

Not Included: Government tax of AUD$88 for orders over AUD$1000
Freight Charges:


The shipping weight kg of the item is shown
under the Specifications tab.


The Express shopping cart default rate is AUD$85 for the first kilo.    Additional freight charges over one kilo
and taxes will automatically and separately be billed to your credit card. You will receive a receipt for the freight.


The total AUD$ freight rates are:

0-1kg $85 (this is the default express freight charge)
>1-2kg $125
>2-3kg $145
>3-4kg $170
>5-6kg $195
>7kg-8kg $225
>8kg-9kg $250
10kg $275
20kg $400   Estimate only.


Some bulky items may be classified as oversize regardless of their weight and have a longer transit time.

The Fine Print:

We sell this part by the manufacturer's part number only.  These products are a special order from the USA
meaning there are no returns, no exchanges and no refunds possible.  The sale is final.

Prices include Australian GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
Marine Direct Australia will contribute $50 towards your return freight charges to USA
within one year of order if there is a warranty issue.


Grey Marketing & Compliance:

Where a brand has an established distributor in Australia, we will decline to sell it.
Most such brands and products have been removed from our American listings.
Some items shown within this category are intended only for the American marketplace
and may not be compliant with Australian Standards and in which case we cannot sell them to you and/or will refund you.



(36048)

SKU 36048
Shipping Weight 18.0000kg
