Power Supply 110AC to 12DC/70A

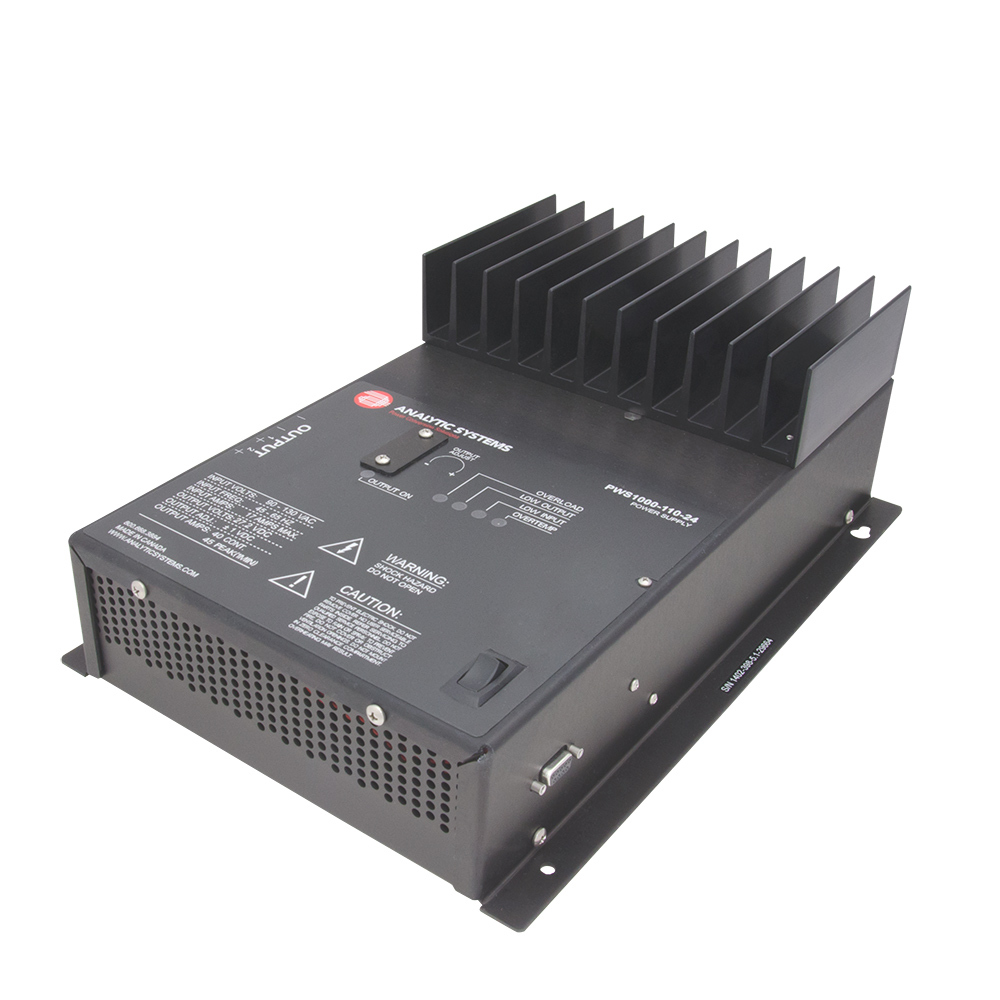

The PWS1000 Series of power supplies provides 12, 24 or 48 Volts DC at 1000 Watts of continuous power from a 110 or 220 Volt AC source.

Analytic Systems’ power supplies use Switchmode technology with powerful IGBT switching transistors for reliability and efficiency with minimum size. Circuit innovations reduce output ripple to levels previously available only from bulky and inefficient linear power supplies. Reliability features include an input fuse, thermal shutdown, current limiting and output short circuit protection with automatic recovery. An Output Over voltage Crowbar circuit protects any powered devices from excessive voltage in the event of a failure of the unit.

The newly updated single-board PWS1000 is ultra-quiet and features the latest generation of current mode PWM control. Extra features include adjustable output voltage audible and visual indicators for low input voltage, low output voltage, over temperature, overload and output on. Either 110 or 220 VAC input (Field Convertible) is available. The PWS1000 also features a four contact output terminal (two positive and two negative contacts) for easy connection of devices to the supply.

Features:

  • Power sensitive electronics without interference
  • Rugged and reliable to ensure years of safe and trouble free operation
  • Adjustable output voltage
  • Extremely rugged and well suited for marine and other demanding environments
  • Ultra-quiet low EMI operation
  • Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature
  • Over-temperature shutdown
  • Current limiting
  • Short circuit protection
  • Output overvoltage crowbar
  • Dry contact output fail relay
  • Remote control option
  • Digital Volt/Ammeter option
  • Custom output voltages available (8V to 55V)
  • 19” Rackmount Available
  • Parallel output diodes available
  • Three year parts and labour warranty


American Sourced Marine Parts:


The product on this page ships worldwide from the United States by Fedex, UPS, Aramex or DHL.
These are premium services with tracking.  Delivery to most destinations is between 6-9 business days.
The minimum freight charge is AUD$85 (about US$57) See table below.


All prices shown are in Australian AUD$.

We sell this part by the manufacturer's part number.  These products are special order from the USA, meaning
there are no returns, no exchanges and no refunds possible.  The sale is final.


Prices include Australian 10% GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Shipments outside of Australia are tax free.


Any additional import fees are paid by the customer.  We will assist with customs formalities if necessary.


Manufacturer's warranty applies.  The warranty is in the box.  If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
MarineDirect Australia will contribute $50 towards your return freight charges to the USA
within one year of order if there is a warranty issue.


Dangerous Goods:


Liquids, gels, pastes and replacement lithium batteries may not ship under any circumstances.


Grey Marketing & Compliance:


Where a brand has an established distributor in
Australia, we will decline to sell it.
Most such brands and products have been removed
from our American listings.
Some items shown within this category are intended only
for the American marketplace and
may not be compliant with Australian Standards
and in which case we cannot sell them to you and/or will refund you.




Express Freight Charges:  Total freight cost is based on the weigh of the package.


The default freight charge is $85 for the first kilo.


The shipping weight kg of the item is shown
under the Specifications tab above.


We use Fedex, UPS, DHL and Aramex Fedex which is generally a 6-9 business day service. Tracking is provided.


Following your purchase we will calculate the freight charges based on the table below.   The default shipping rate for 1kg for any order is $85.


If the weight is greater than 1 kilo, then the following additional amounts will be payable in arrears AUD$ and prior to shipping:





0-1kg $85 (This is the default rate)


>1-2kg  +$40


>2-3kg  +$65


>3-4kg  +$80


10kg    +$185


15kg    +$240


20kg    +$295


Some bulky items may be classified as oversize regardless of their weight.  Freight charges over 1 kilo will be based on the table above.




(77024)

SKU 77024
Shipping Weight 6.7100kg
