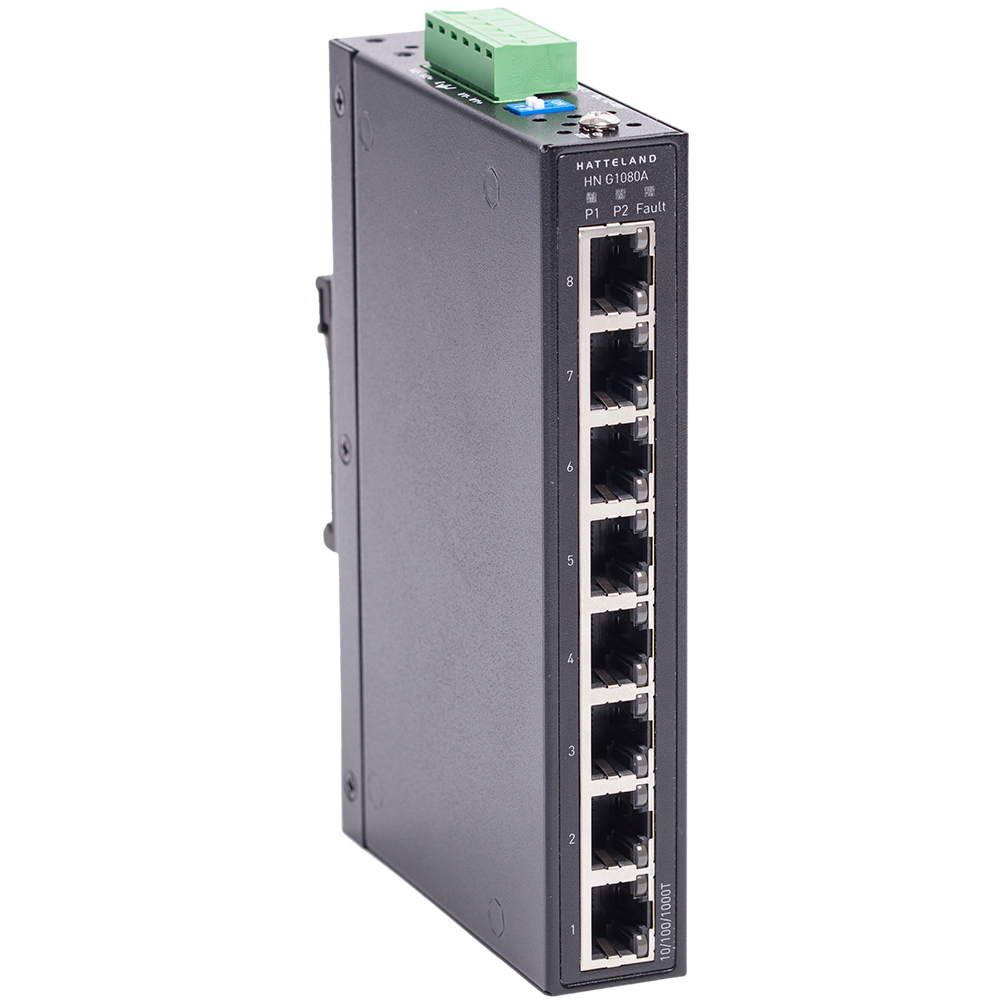

Industrial 8-Port Slim Type Unmanaged Gigabit Ethernet Switch

Support auto-negotiation and auto-MDI/MDI-X, Jumbo Frame up to 9 K Bytes, Relay output to carry capacity of 1A at 24 VDC, store and forward transmission, flow control, Hardware DIP-switch to enable/disable power failure warning function, Rigid IP-30 housing design, DIN-Rail and wall mounting enabled.

Specifications:

  • Physical Ports: 8 x 10/100/1000Base-T(X) Ports in RJ45, Auto MDI/MDIX
  • Ethernet Standards: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow control. MAC Table: 4096 MAC addresses. Processing: Store-and-Forward
  • DIP-Switch: DIP-Switch 1: Power-1 failed warning : (ON) enable, (OFF) disable DIP-Switch 2: Power-2 failed warning : (ON) enable, (OFF) disable
  • LED Indicators: Power indicator Green: Power LED x 2, Fault indicator Amber: Indicate PWR1 or PWR2 failure, 10/100/1000Base-T(X) RJ45 port indicator Left LED for Link/Act indicator: Green for 1Gbps connection, Amber for 10/100Mbps connection, Right Amber LED for Full/Half-Duplex indicator
  • Fault Contact: Relay output to carry capacity of 1A at 24VDC
  • Power: Redundant Input power: Dual DC inputs. 12 48VDC on 6-pin T.Block Power consumption (Typ.): 5.5 Watts Overload current protection: Present Reverse polarity protection: Present
  • Physical: Enclosure: IP-30. Weight: 390g Dimension (W x D x H): 26.1 (W) x 94.9 (D) x 144.3(H) mm (1.03 x 3.74 x 5.68")
  • Environmental: Storage Temperature: -40 to 85°C (-40 to 185°F) Operating Temperature: -40 to 70°C (-40 to 158°F) Operating Humidity: 5% to 95% Non-condensing
