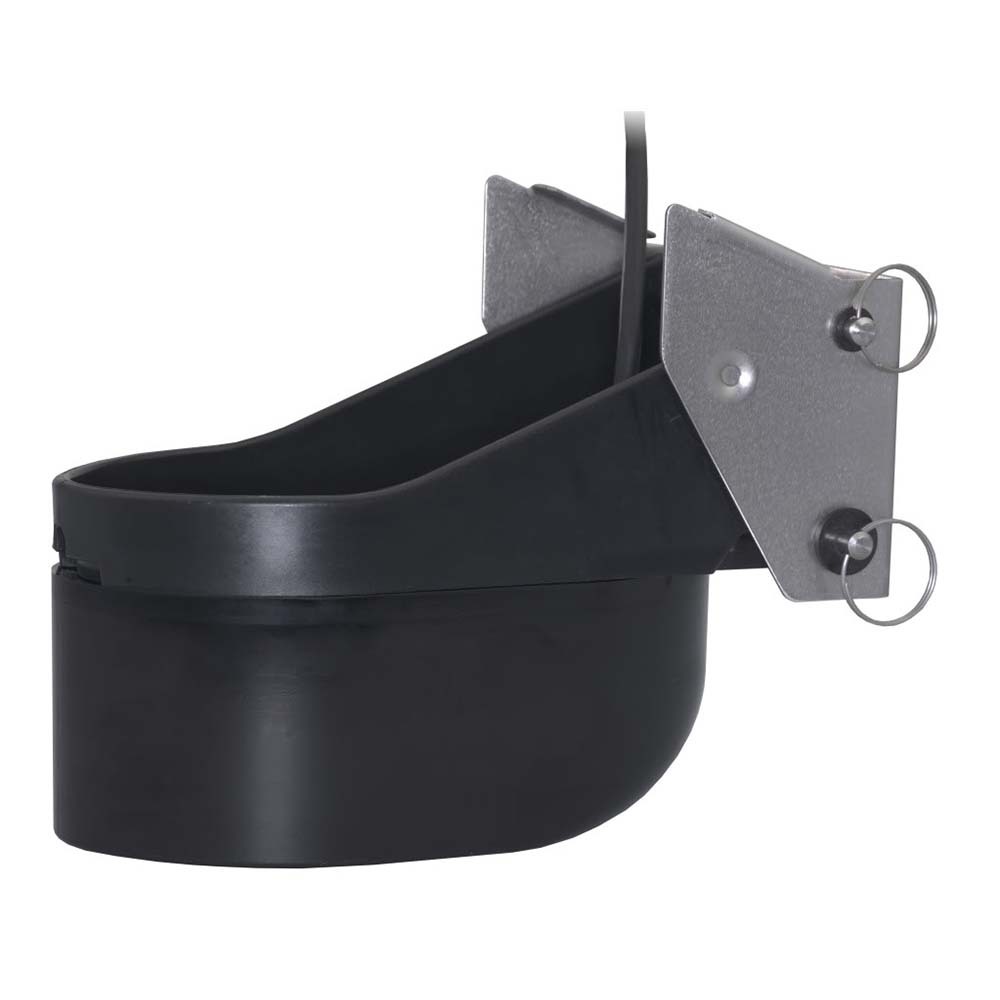

TM265C-LM-12F Airmar TM265C-LM-12F Transom Mount Transducer w/12-Pin Connector f/Furuno TZT12F, TZT16F & TZT19F 91424
TM265C-LM-12F Transom Mount Transducer with 12-Pin Connector for Furuno TZT12F, TZT16F & TZT19F
Rely on Airmar's broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fishfinders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, CHIRP uses a precise sweep pattern of many frequencies within a long-duration transmits pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fishfinder.
Specifically designed for smaller boats (25'-40'), the TM265C-LM CHIRPS across the following bandwidths:
Low & Medium-Frequency (LM)
Low—Chirps from 42 kHz to 65 kHz, 25° to 16° beamwidth
Medium—Chirps from 85 kHz to 135 kHz, 16° to 11° beamwidth
Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency
Features:
- 8-Internal, Broadband Ceramic Elements
- Depth & fast-response water-temperature sensor
- Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)
- Operating frequencies:
- Low—Chirps from 42 kHz to 65 kHz
- Medium—Chirps from 85 kHz to 135 kHz
- Beamwidth (Adjustable):
- Low—25° to 16°
- Medium—24° to 16°
- 10 m (33’) cable
- The depth and fast-response water-temperature sensor
- 12 Pin Connector for use with Furuno TZT12F and TZT16F Displays
- Urethane transducer housing and stainless steel mounting bracket
- Boat Size: 8 m to 12 m (25’ to 40’)
- Hull Type: Fiberglass, wood, or metal
- Exclusive Transducer ID
American Sourced Marine Parts: Please read this.....
The product on this page ships worldwide from the United States by Fedex or DHL. Prices are AUD$.
Express Delivery Service >30 kilos:
Included: Premium DHL or Fedex 4-7 day service. Transit Insurance up to AUD$1000 value. Customs clearance.
GST is already pre-paid. Tracking of your parcel. Choose Express Freight at checkout.
Not Included: Government tax of AUD$88 for orders over AUD$1000Freight Charges:
The shipping weight kg of the item is shown under the Specifications tab.
The Express shopping cart default rate is AUD$85 for the first kilo. Additional freight charges over one kilo
and taxes will automatically and separately be billed to your credit card. You will receive a receipt for the freight.The total AUD$ freight rates are:
0-1kg $85 (this is the default express freight charge)
>1-2kg $125
>2-3kg $145
>3-4kg $170
>5-6kg $195
>7kg-8kg $225
>8kg-9kg $250
10kg $275
20kg $400 Estimate only.Some bulky items may be classified as oversize regardless of their weight and have a longer transit time.
The Fine Print:
We sell this part by the manufacturer's part number only. These products are a special order from the USA
meaning there are no returns, no exchanges and no refunds possible. The sale is final.
Prices include Australian GST, but may be subject to further customs fees or charges if the order is over AUD$1000.
Manufacturer's warranty applies. The
warranty is in the box. If a product is dead on arrival, we will replace it.
Where possible warranty DIY spare parts will be provided.
Marine Direct Australia will contribute $50 towards your return freight charges to USA
within one year of order if there is a warranty issue.
Grey Marketing & Compliance:
Where a brand has an established distributor in Australia, we will decline to sell it.
Most such brands and products have been removed from our American listings.
Some items shown within this category are intended only for the American marketplace
and may not be compliant with Australian Standards and in which case we cannot sell them to you and/or will refund you.
(91424)
| SKU | 91424 |
