Designed for automatic horizontal handling it has an independent capstan for retrieval of a secondary rope/chain rode or to assist with docking procedures. The HWC Series is designed for automatic horizontal handling of chain-only anchor rodes while offering an independent capstan for the retrieval of a secondary rope and chain rode or to assist with docking procedures.

Features and benefits
  • Fully automatic single or dual direction chainwheel operation for use with chain only rodes
  • Functional rope hauling from fore and aft using independent fluted stainless steel snag-free warping drum with clutch disengagement of chainwheel for positive control of all ropes
  • Optional dual anchor handling with smooth independent control of each chainwheel via cone clutches
  • Chain pipe assembly supplied
  • Cone-type clutch/brake mechanism permits manual ‘free fall’anchoring. Cone clutches unlike dog clutches provide smooth progressive engagement ensuring safe and precise operator control
  • Chainwheel locking pawl to assist when using warping drum independently
  • Simple deck mounted installation with no under deck parts
  • Simplified maintenance with ability to strip the running gear (chainwheel and drum) from the windlass without disturbing the windlass mounting
  • Heavy duty dual direction motor designed for marine winches
  • Chainwheel and warping drum of high-quality chrome finish
  • over marine-grade bronze
  • Marine-grade alloy casing pretreated powder coated and finished with a two component white polyurethane paint

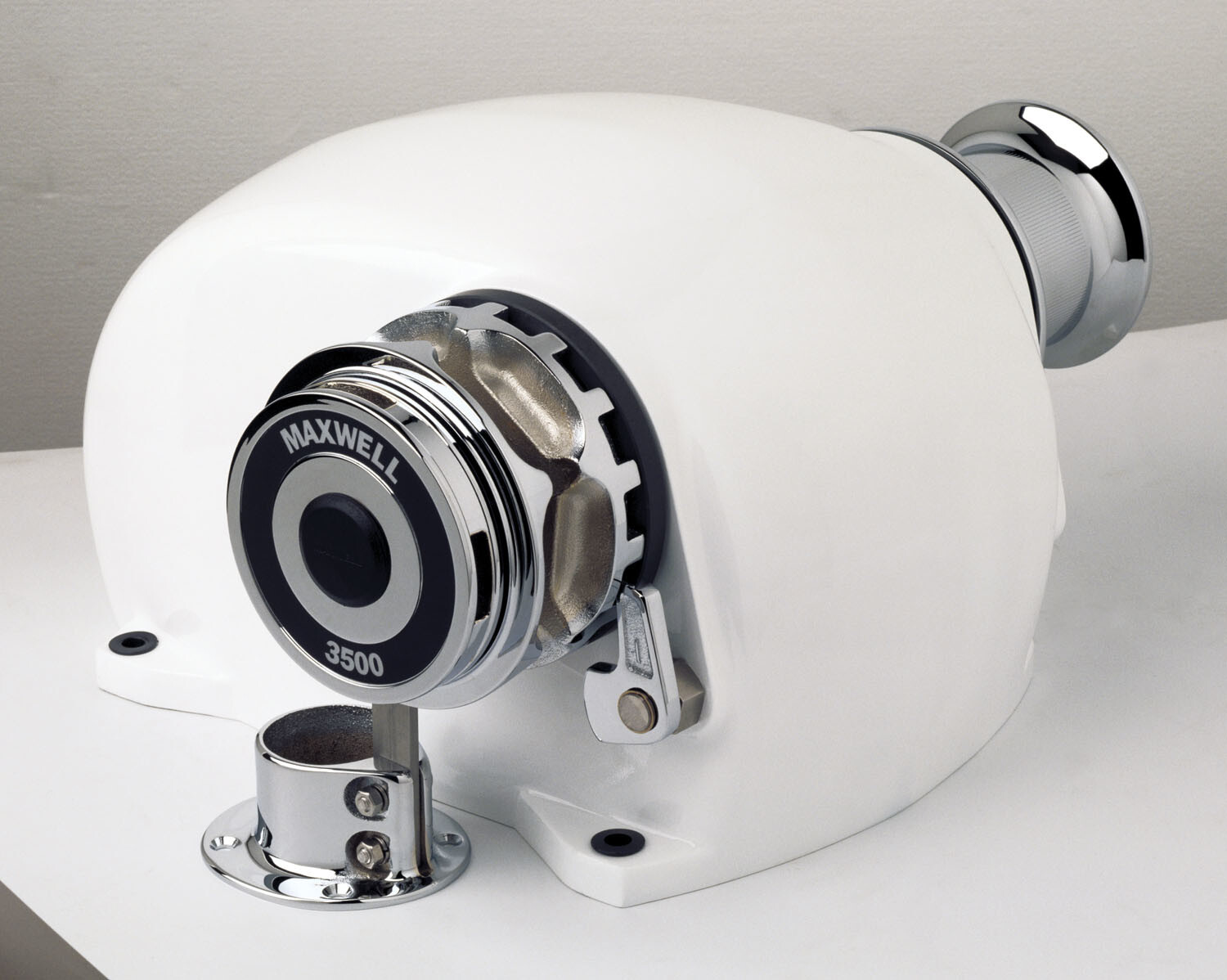

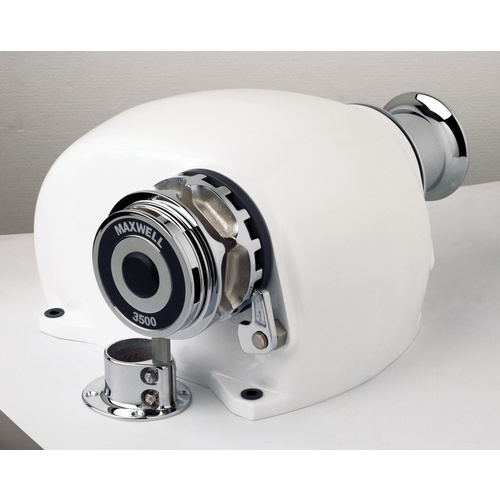

  • 3500 HWC, 12V, 1200W, DCW/SD(port)

    (P100217)

    SKU P100217
