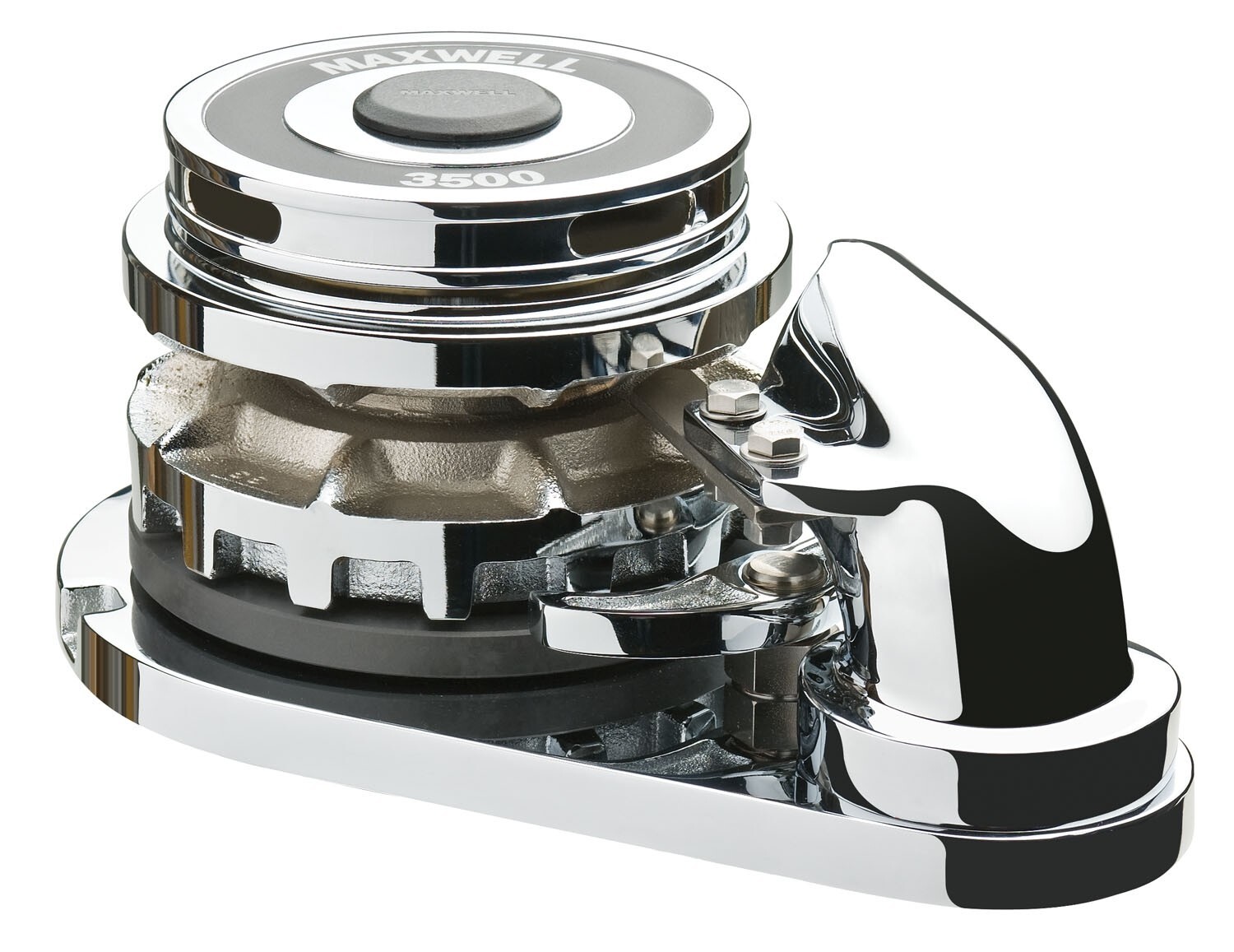

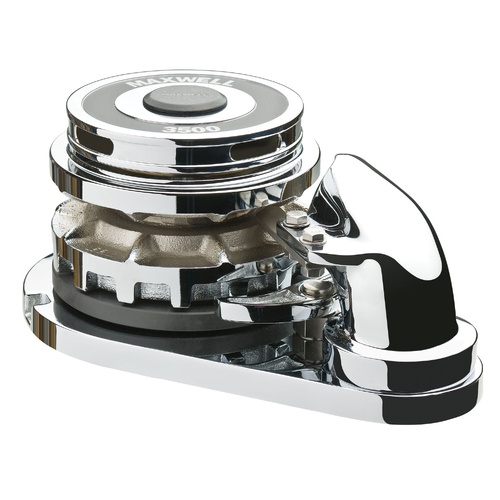

Designed for vertical handling it has an independent capstan for retrieval of a secondary rope/chain rode or to assist with docking procedures. The VWC Series is designed for automatic verticalhandling of chain-only anchor rodes while offeringan independent capstan for the retrieval of asecondary rope and chain rode or to assist withdocking procedures.

  • Fully automatic single or dual direction chainwheel operation
  • High-quality finish on above deck components manufactured from marine grade stainless steel (AISI 316) for long term durability
  • Integral chain pipe and stripper are aligned for virtually jam-free operation providing automatic feed of chain into and out of the anchor locker
  • Port and starboard chain pipes for twin installations (Sizes 2500 and above only)
  • Cone-type brake/clutch mechanism permits manual ‘free fall’ anchoring. Cone clutches unlike dog clutches provide smooth progressive engagement ensuring safe and precise operator control
  • Chainwheel locking pawl
  • Optional Band Brake available for 3500 series unit
  • Clutch disengagement of the chainwheel enables independent rope hauling from any direction using the Max-grip™ snagfree warping drum for positive control of all ropes
  • Simple through deck installation by modular design and precise alignment of gearbox to the topworks utilising marinegrade stainless steel bolts
  • Anodized aluminium gearbox and spacer tube on all models.
  • Heavy duty dual direction motor designed for marine winches
  • Low Profile configurations (no warping drum) are available
  • 1500 VWCLP, 12V, 1200W, 50TDC CW Chainwheel Only

    (P100426)

    SKU P100426
